Pressure losses
Determining the pressure loss in a hose line
Friction losses inevitably occur when media are conveyed. These must be taken into account when determining the required compressor output. Our hoses are flow-optimized and have particularly smooth inner surfaces. They form uniform folds along the inner bend radius, reducing pressure losses to a minimum. This helps to lower the acquisition and operating costs of the entire system.
The total pressure loss consists of two components: the pressure loss Δpᵥ, which can be taken from the corresponding diagrams, and the additional bend pressure loss Δp_bend, which must be taken into account and calculated when the hose is installed with bends.
The following formula applies:
- l = hose length
- ζ = resistance coefficient, see below
- ρ = density; for example, the density of air is 1.21 kg/m³
- v = flow velocity
Δpv,Σ = (l⋅Δpv) + Δpbend = (l⋅Δpv) + (ζbend 1 + ζbend 2 + ⋯ + ζbend n) ⋅ (ρ/2) ⋅ v2
The resistance coefficient ζ must be determined separately for each bend and then entered into the formula above:
ζbend = k ⋅ ζ90°
| Angle of curvature φ | 30° | 60° | 90° | 120° | 150° | 180° |
| k | 0.4 | 0.7 | 1.0 | 1.25 | 1.5 | 1.7 |
| Bending radius / internal Ø | 1 | 2 | 4 | 6 | 10 |
| ζ90° | 0.51 | 0.3 | 0.23 | 0.18 | 0.2 |
Example
Pressure loss in an AIRDUC® PUR 351 FOOD hose with an internal diameter of 75 mm under the following conditions:
- Flow velocity: 19 m/s

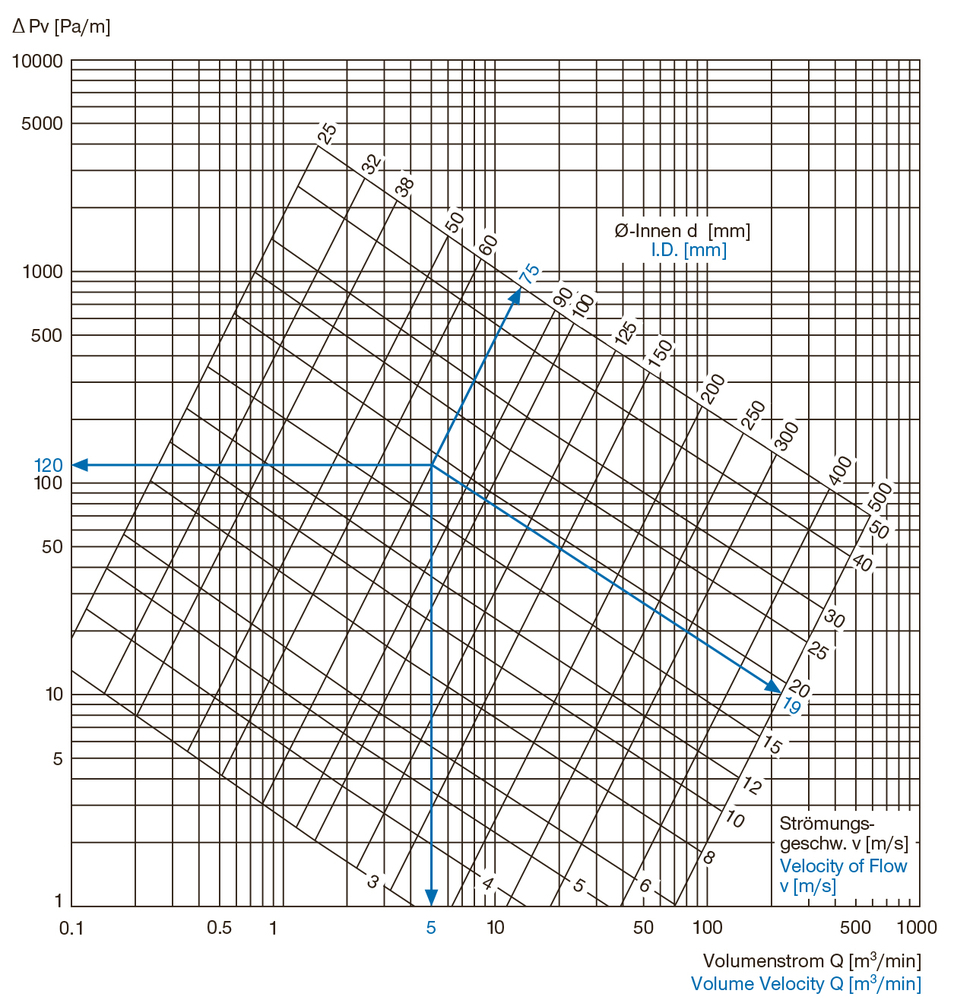

(according to the diagram, this results in a pressure loss of Δpv = 120 Pa/m) - Hose length: 12 m
- 90° bend: formed using the permitted minimum bend radius
bend radius + ½ × internal diameter) / internal diameter ≈ 1 → ζ₉₀° = 0.51
For φ = 90°, k = 1. - 180° bend: installed using twice the minimum bend radius
→ ζ90° = 0.3
For φ = 180°, k = 1.7.
Δpv,Σ = (12 m · 120 Pa/m) + (1 · 0,51 + 1,7 · 0,3) · 1/2 · 1,21 kg/m³ · (19 m/s)² = 1440 Pa + 223 Pa = 1663 Pa

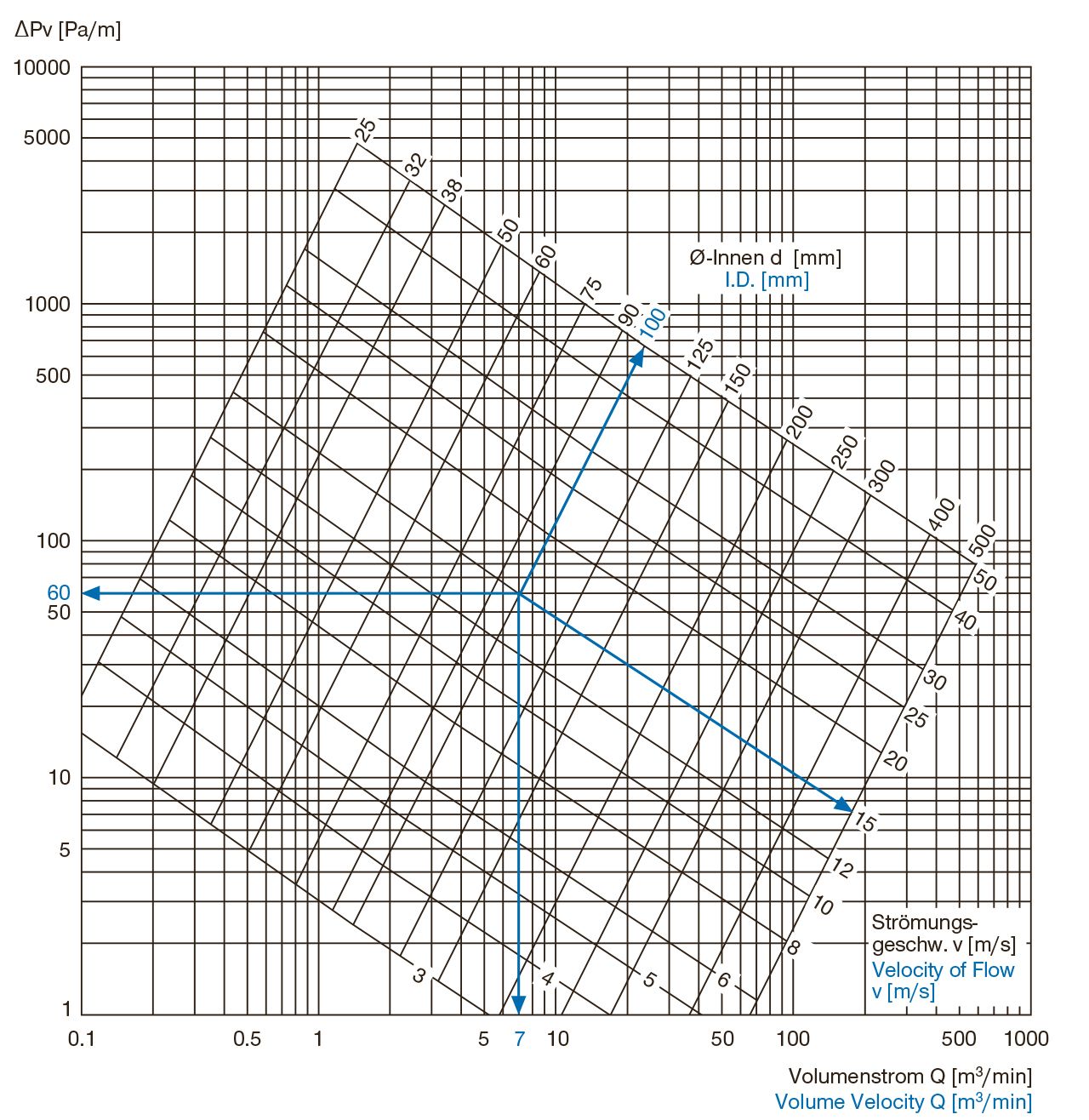

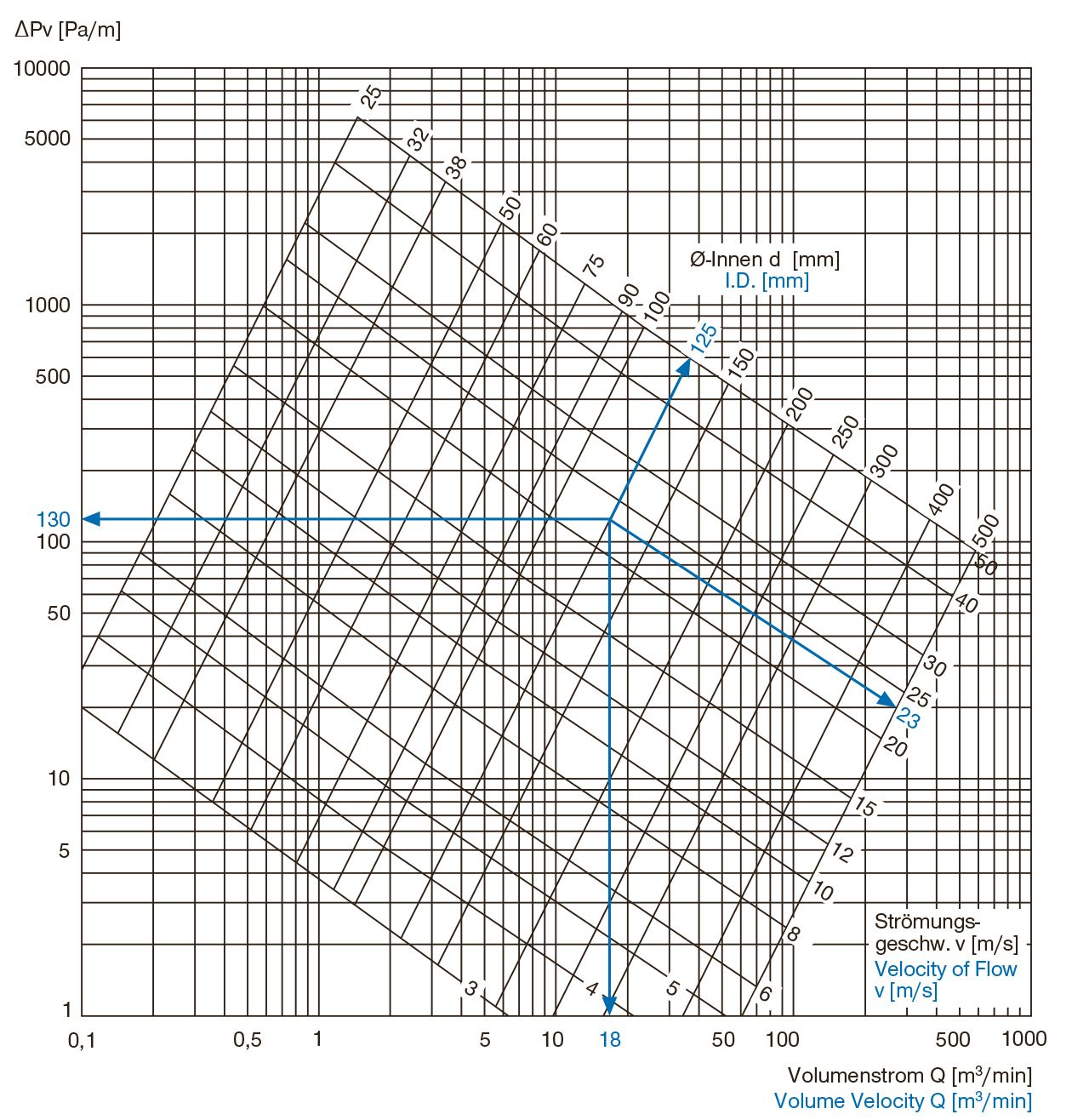

Average Δpᵥ values for the following hose types:
- AIRDUC® 341, 350, 351, 352, 362, 363
- AIRDUC® 356
- BARDUC® 381, 382
- NEO 2, SIL 2
- TIMBERDUC® 533
- NORPLAST® 379 - 380, 383 - 389
- AIRDUC® 345, 355
- AIRDUC® 357
- NEO 1, SIL 1
- PROTAPE® 326, 327
- TIMBERDUC® 534
- PROTAPE® 310, 322, 370, 371
- PROTAPE® 301, 330, 332
- TIMBERDUC® 531, 532
- CP 450 - 487
- SuperFlex 372
- EVA 373
As the user’s operating conditions are beyond our control and the range of possible system designs is too extensive, no guarantee can be given regarding the accuracy of the information provided.
Subject to technical modifications.
